Customization USB Camera Module 1MP SC1346 720P 30fps Fixed focus without distortion
SC1346 720P USB Camera Module:
T-U30W-V1 USB camera module use high-performance 1MP 1280V*720H resolution with 1/4.6-inch Rolling shutter SC1346 CMOS image sensor developed by SmartSens Technology. Providing smooth image capture in dynamic scenes. Its support for a frame rate of up to 60 frames per second makes it very suitable for security monitoring applications.
SC1346 1MP 720P 30fps high sensitivity FF wide angle lens USB drive free camera module.With its high signal-to-noise ratio, it can be applied to multiple fields such as security monitoring, smart homes, industrial automation, etc.
Specification:
| Model | T-U30W-V1 | CRA | 15º |
| Sensor | 1/4.6" SC1346 CMOS | Power Supply Voltage | USB 5V±5% |
| Resolution | 1MP 1280*720 | Output Format | MJPG/YUV |
| Pixel Size | 2.65 µm x 2.65 µm | Operating System | WindowsXP/Win or Linux |
| Shutter Type | Rolling Shutter | Interface | USB2.0 |
| Frame Rate | 720P 30fps | Package | CSP |
| Application | Security monitoring/Robot vision/video conferencing/security monitoring/smart toys/video doorbell/Access Control System |

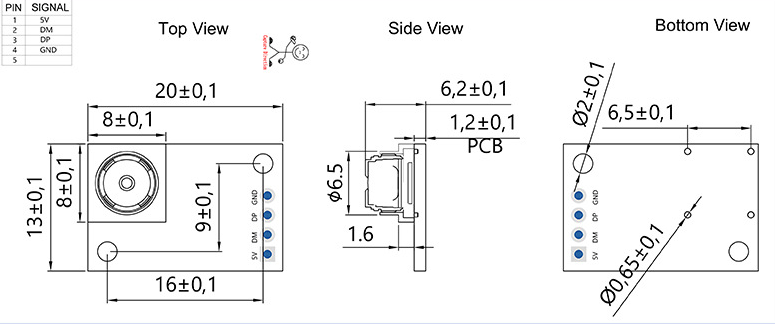

Technical & Mechanical:
More details of 1MP SC1346 USB camera module:
SC1346 1 million 1280*720 drive free USB camera module for smart home. It can be installed at the door as a visual doorbell, allowing users to remotely view the situation outside the door through devices such as mobile phones and make video calls with visitors. It can also be used for indoor monitoring to detect any abnormal situations in the home, such as open doors and windows, water leakage, etc. At the same time, it can also be combined with intelligent assistants to achieve some visual based interactive functions, improving the intelligence and safety of the home.
1/4.6 inch SC1346 1-megapixel 720P 30fps FF wide angle pet monitoring camera module with USB interface.Meeting various needs such as real-time screen viewing and behavior monitoring analysis, providing convenience for pet owners, and ensuring the health and safety of pets.
Factory price 1280*720 USB drive free intelligent toys with SC1346 CMOS color image sensor in interactive games such as recognizing children's gestures and expressions, it is possible to accurately capture children's movements and expressions, providing more precise visual data for interaction. It also allows children to see clearer and more accurate images in the learning process, enhancing learning effectiveness.
Most popular SC1346 720P 30fps FF no distortion lens USB camera mdoule for video doorbells or access control systems for indoor monitoring, monitoring whether there are any abnormal situations in the home. The USB interface can simplify the installation process, reduce system complexity, and has strong compatibility, which can adapt to multiple operating systems and device platforms.
High sensitivity 1280*720 SC1346 1MP CMOS sensor USB camera module for video conferencing on computers and other devices, providing clear video images and allowing users to have a better visual experience in remote communication. Suitable for scenarios such as remote work and online education.
