GC032A DVP Camera Module 0.3MP 640*480 VGA 30fps Fixed Focus Lens

GC032A 640*480 DVP Camera Module:

TYS-JS2A-V1 DVP camera module uses CalaxyCore 1/10-inch GC032A CMOS image sensor with pixel size of 2.2um*2.2um and a resolution VGA 640*480. Featuring high sensitivity,low noise,and bulit-in automatic exposure control (AEC) and white balance (WB) algorithms. It can reduce the requirements for external processors,optimize image effects in different scenes,and further enhance the reliability of scanning.

Resolution and frame rate adaptation: gC032A DVP 24pin 0.3MP VGA 640*480 resolution YUV FF lens can clearly capture the details of QR codes,and a frame rate of 30fps.Ensures that QR code images can be quickly captured during the scanning process. Even if the QR code is in a fast moving state.There is a high probability of successful recognition,Providing a foundation for accurate scanning.

Advantages of DVP interface: Support OEM GC032A VGA 30fps fixed focus high sensitivity camera module with DVP interface.It can quickly transmit the QR code images captured by the camera to the main control chip for processing.Reducing data transmission delay and improving the real-time scanning performance.

High cost-effectiveness: 0.3MP GC032A ISP CMOS sensor VGA 30fps low noise FF lens DVP camera module not only meets the requirements of scanning function,but also has relatively low cost. For equipment manufacturers who apply scanning function on a large scale.It can effectively control production costs and has a high cost-effectiveness.

Specification:

Technical & Mechanical:

• Power Supply: AVDD: 2.7 ~ 3.0V

  DVDD: 1.7 ~ 1.9V

  IOVDD: 1.7 ~ 3.0V

  Power Consumption: 80mW@30fps(active)

  ＜70uA@HW standby
• Dark Current: 70e-/s
• Stable image: 0°C to 50°C
• Operating Temperature: -20°C to 70°C
• Module Size : 12.5mm*75mm*5.15mm
• Windowing support
• Horizontal/Vertical mirror

More details of VGA 640*480 camera module:

Factory price GC032A VGA resolution 640*480 30fps DVP camera module with no distortion lens for simple attendance machines, facial recognition auxiliary devices for community access control, etc., recognize personnel entry and exit management and attendance records by capturing facial images. It can also be used for some low-cost fingerprint recognition auxiliary devices, capturing fingerprint images to assist the fingerprint recognition system in making more accurate judgments.

Low price GC032A ISP image CMOS sensor 0.3MP DVP camera module in the field of toys, such as toy cars with camera functions, toy robots, etc., children can experience the fun of capturing or achieve the visual perception function of toys.

Hot selling quality GC032A VGA 30fps FF camera modules support SPI and DVP interfaces, Can be integrated into smart door locks to achieve real-time monitoring of home environments.

DVP camera module 0.3MP VGA

CMOS image sensor fixed focus

640x480 resolution camera module

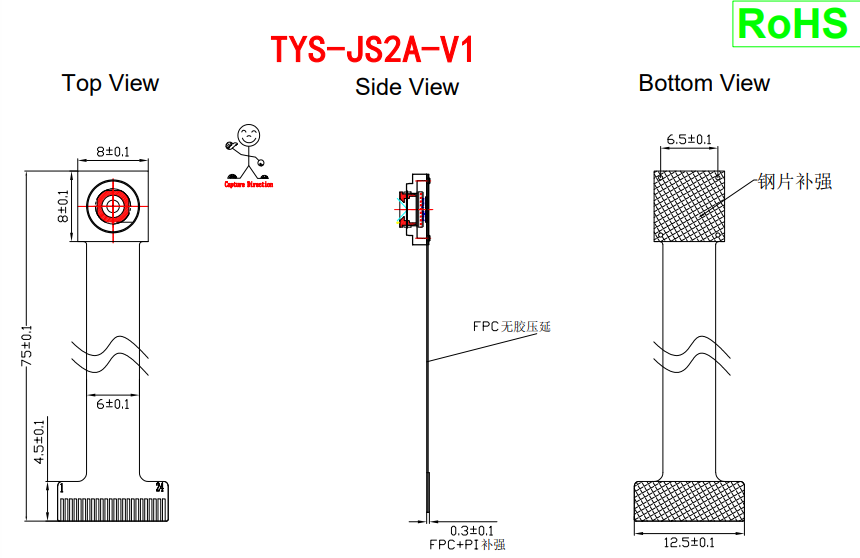

GC032A DVP Camera Module 0.3MP 640 X 480 VGA Fixed Focus Cmos Image Sensor Module Images
